Jigs, Fixtures and Nesting

our fixture expertise

  • Assembly Nest and Tools
  • CMM Holding Fixtures
  • Photometric Holding Fixtures
  • Custom Vacuum Pads and Machine Seals
  • ESD Dissipative 3D Printed Nest and Tools
  • Validation and Testing Fixtures
  • In-Process Quality Check Tools
  • Poka-Yoke
  • T-Slot Equipment Design and Assembly (8020)
  • Machine Guards
  • Organization and 5S tools

Our Services

  • Solution Design, CAD, and Root Cause Problem Solving
  • CNC Machining
  • 3D-Printing
  • Fiberglass Layups
  • Assembly

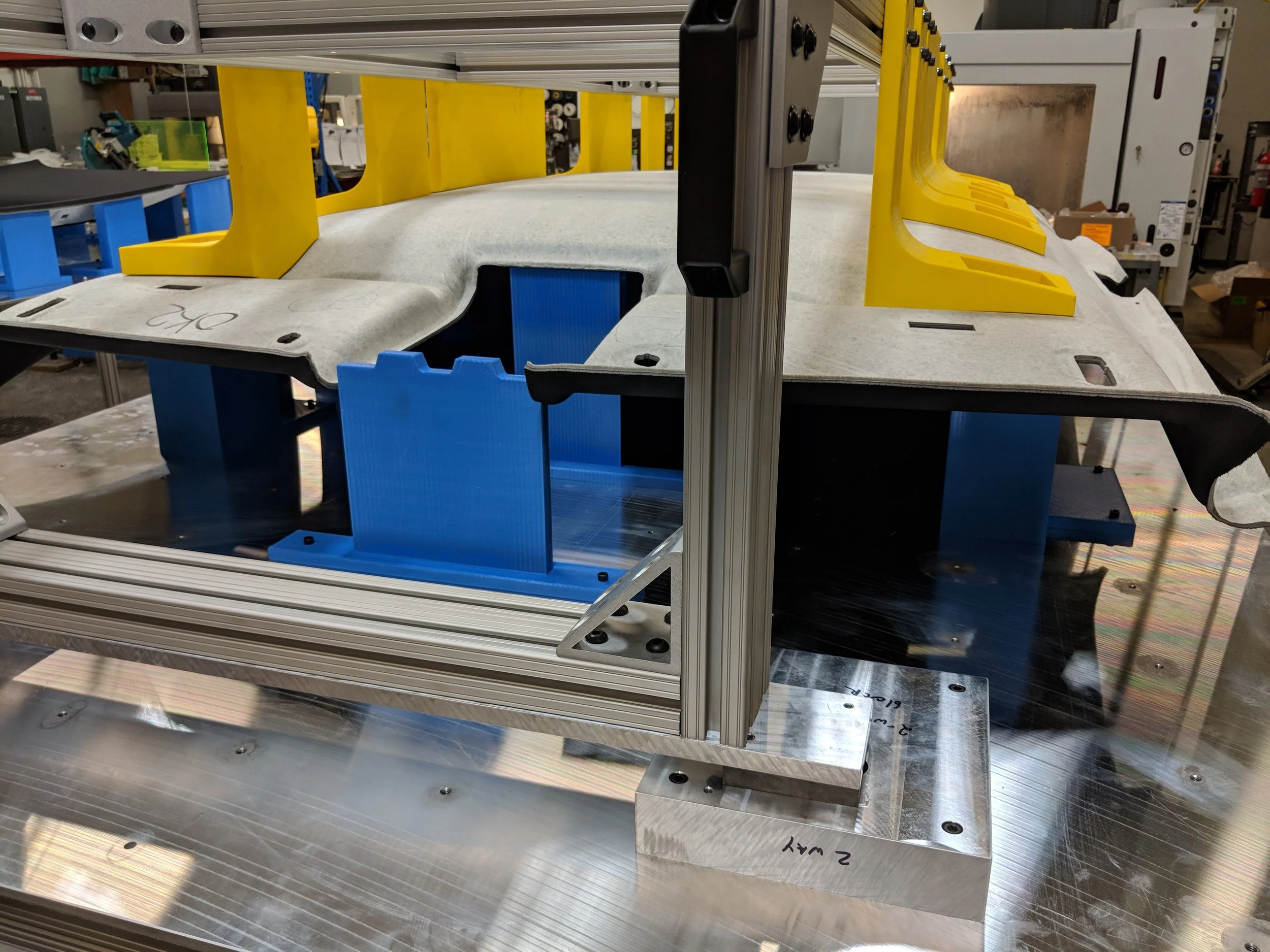

automotive supplier manufacturing fixture.jpg

Manufacturers need customized jigs and fixture to ensure quality, efficiency, and worker safety. Broadview creates solutions for your jig & fixture needs by applying our resources in engineering, manufacturing, 3D Printing, and CNC machining to create assembly nest, tools, holding fixtures, vacuum pads, test fixtures, Poka-Yokes, and 5S tools to fit your needs and solve your problems.



Examples



Electro-Mechanical Testing Device

Electro-mechanical automotive actuator validation testing fixture. Broadview designed and manufactured fixture for a large tier1 automotive industry supplier.




Mechanical Actuator validation test fixture

Mechanical automotive actuator validation testing fixture.

Broadview designed and manufactured fixture for a large tier1 automotive industry supplier.




Custom Wire Bending fixtures

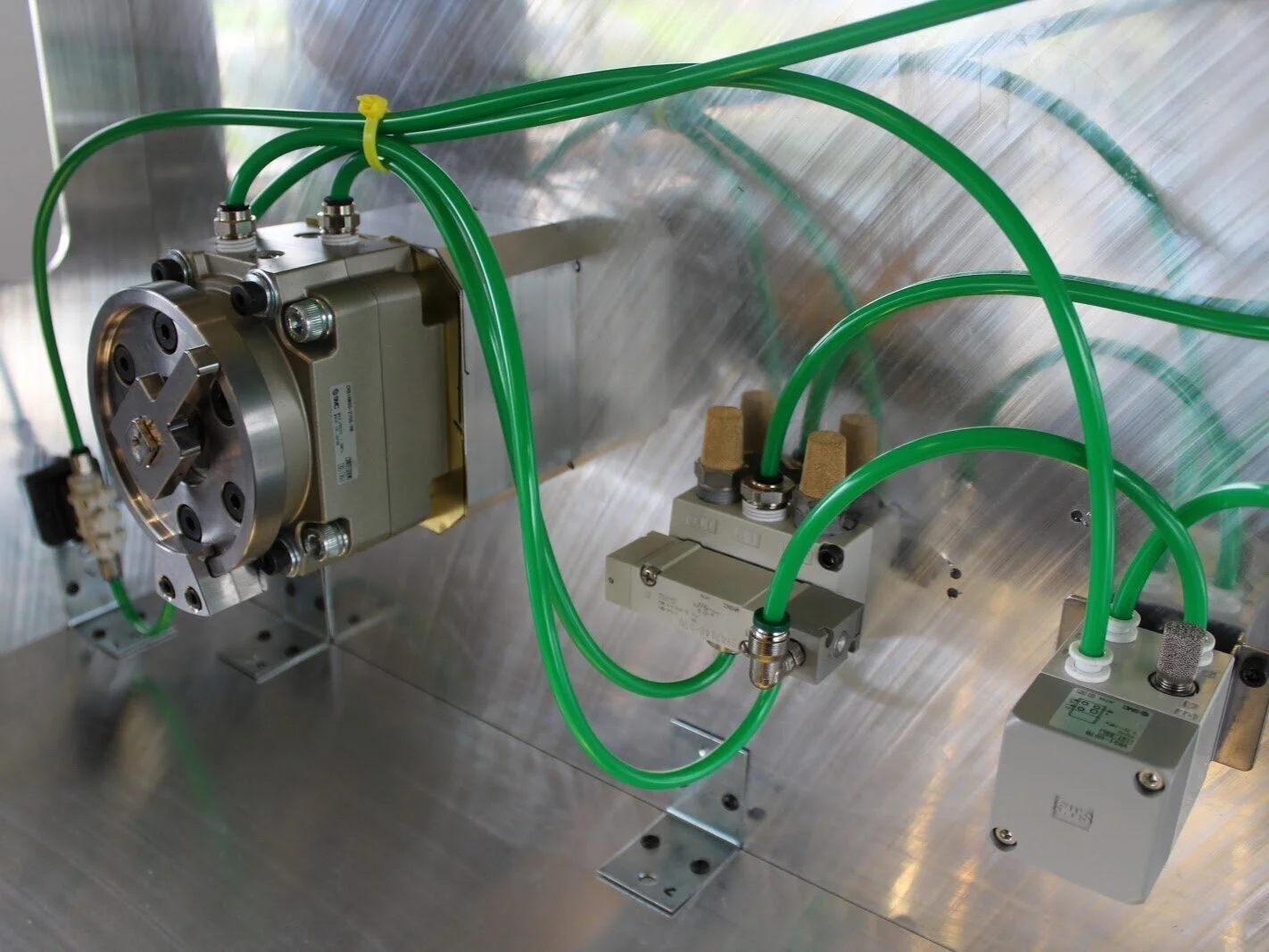

Simple spring bender jig with air logic actuation and palm buttons for safety.




Custom Assembly Holding Fixture

CNC machined plate and uprights.
3D-printed part holding details
Designed from part CAD data.




Fixtures for Automotive

3D-printed templates on 8020 rails with 2-way/4-way location to product.
CAD design by Broadview based on client provided part data
Fabricated t-slot 8020 frame systems designed and assembled.
3D-printed templates and nest.
CNC cut locators
CMM verified
Used for part location placement and inspection.




T-Slot Custom Equipment

Designed for Cycle Validation of Automotive Components.
CNC Machined Holding Block, Motion blocks and Fixtures.



automotive component.png

Automotive component product assembly nesting

3D Printed nesting blocks
CNC machined 2-way & 4-way locators.
Mounted to laser cut aluminum plate and t-slot framing cart



custom warming oven automotive assembly.png

Custom warming oven

Automotive part assembly processing
